Ph5mm Outdoor LED Display
Ph5mm outdoor LED display stands out in the display industry for its high reliability, high stability, high quality, best visual experience, nice color consistency, and mixture. In addition, with affordable prices, Colorlight P5 outdoor LED displays have not only obtained customers' reputations but also have been highly praised and appreciated by other LED display manufacturers. Choosing Colorlight P5 LED display screen means you have chosen experience, reliability, and heart-to-heart service. In addition, hundreds of mature projects have proved the stability of our Ph5mm outdoor SMD-led screen product. We are proud to recommend our Ph5mm Outdoor LED display to you. Welcome to contact us. Outdoor P4mm, P6mm, P6.67mm, P8mm, P10mm, P16mm specs are available upon request.
Features
Higher contrast ratio: High quality LED to ensure Outdoor P5 LED sign has a high contrast rate and video is clearer and showy.
Best viewing angle reach to 160° horizontal and 120° vertical, you will see a clear and showy picture or smooth video showing on the screen at different angle.
Perfect visual effect: 40000 pixels density per square meter and 5mm pixel pitch to ensure a best balance between brightness and resolution.
High quality LED to ensure P5 outdoor LED sign has an excellent white balance even in semi-outdoor environment.
Adopted with high quality LED material and applied with strict quality control in order to ensure its high reliability and stability.
Slim & light design: outdoor P5 LED screen adopts self developed aluminum or steel structure to ensure the display light weight, good flatness, excellent heat dissipation and smoothness, easy to handle and transport.
P5mm Outdoor LED Display with 2 years warranty, 7/24 heart to heart before-sale and after-sale service.
Automatically adapt brightness to the changes of its surroundings for energy saving.
High quality, high stability, 24/7 running, reliable non-stop.
Easy installation and maintenance: module design to ensure easy installation and maintenance, save you labor and time.
Customized size and structure design is available, OEM & ODM are welcomed too.
Parameters
| Description | Item | Technical parameter |
|---|---|---|

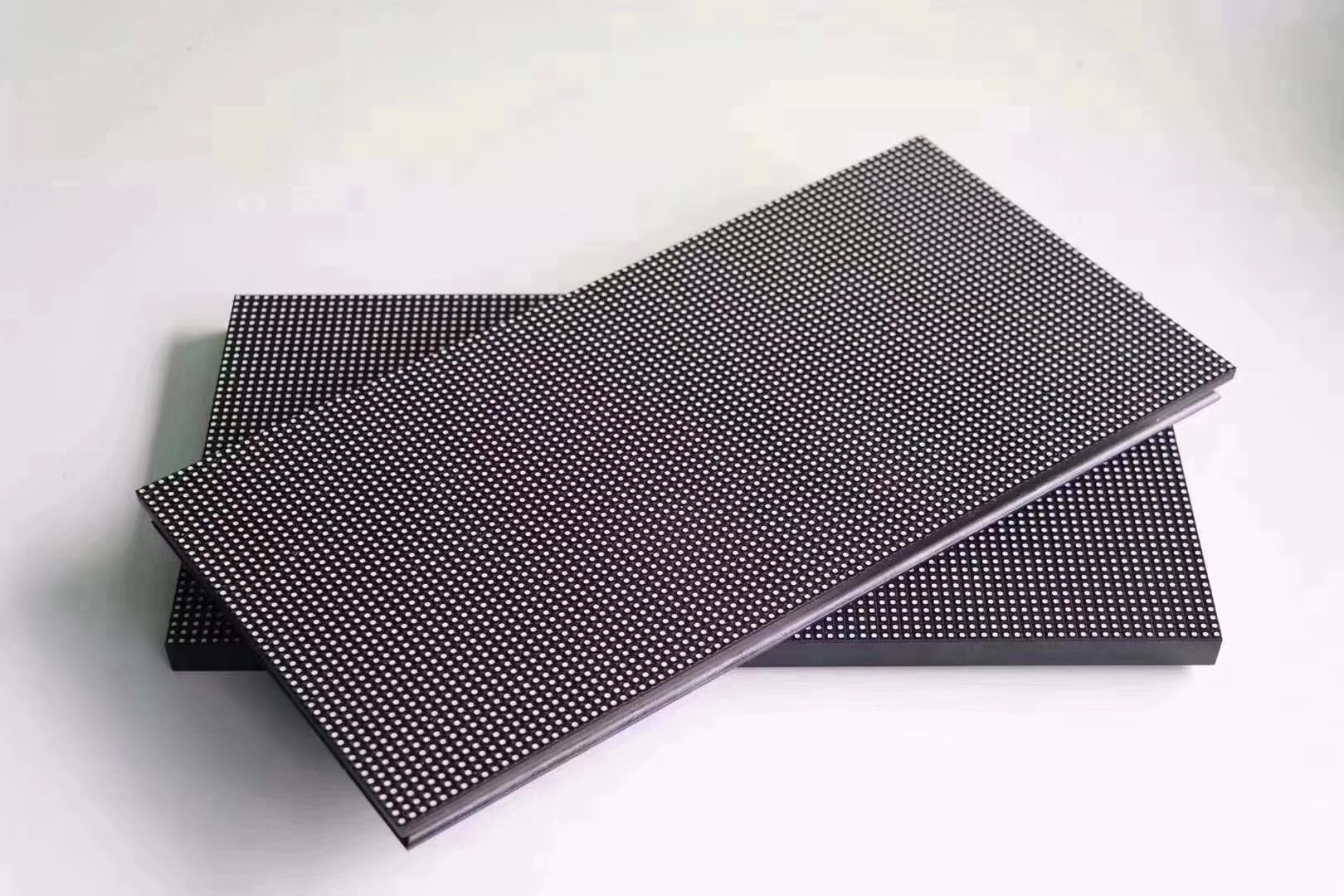

| LED Module | Module size | 360*160mm |
| Pixel pitch | 5mm | |
| Pixel density | 40,000 dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Led specification | SMD 2727, SMD1921 | |
| Pixel resolution | W:64dots*H:32dots | |
| Power System | Working voltage | DC9-36V |
| Average power consumption | 400W /m2 | |
| Max. Power consumption | ≤800W/ m2 | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | 1/8 scan |
| Drive type | Constant Current driver IC | |
| Refresh frequency | ≥300Hz | |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | |
| Brightness white balance | More than 6500 cd/ m2 | |
| Brightness adjustment | 256 levels of each color(R/G/B)by software | |
| Operating ambient humidity | 10%–95% | |
| Video signal | PAL/NTSC | |
| Control system | DVI display card+full color controller card | |
| MTBF | ≥10,000hours | |
| Life span | ≥100,000hours | |
| Flatness | Tolerance of interpixel 0.3mm ≤ | |
| Modules clearance | Tolerance of modules clearance 0.6mm ≤ | |
| Power switch | Automatic switch | |
| Display mode | 960*320 | |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m, Single-mode optic fiber transmission distance 10KM | |
| Software | Colorlight LED Control System and LED VISION or Novastar, Linsn. |
