Indoor LED P5 module
Indoor LED P5 module
Pixel Pitch: 5mm Module Size: 320*160mm Module Resolution: 64*32 Full Color RGB:1R1G1B SMD pixel configuration provides vibrant, true-to-life RGB lighting. RGB Pixel High Resolution:64x32 pixel resolution ensures crisp, detailed visuals for your indoor LED display. Easy Installation:Lightweight and portable design with simple installation for quick setup. Customizable Options:Offers customization for a tailored LED display experience. Versatile Scanning:1/16 scan mode offers smooth, fluid motion for dynamic LED content. Indoor 5.0 LED display module with a pixel pitch of 5mm. Bring content to life with its stunning image quality. 16-bit color with a higher greyscale level.
Product Introduction

The indoor P5 LED display module is a high-density LED screen panel for various indoor visual experiences.    It’s composed of thousands of bright LEDs that bring any content to life with their rich and dynamic color output.

P5 LED screen module uses cutting-edge display innovation, featuring full-color SMD (Surface Mounted Device) LEDs and black LED technology that enhance visual output through superior contrast and rich color fidelity.    Specifically designed for environments where high brightness isn’t always favorable, this module boasts a low brightness that ensures comfortable viewing in indoor conditions, preserving the quality without overwhelming the viewer’s eyes.

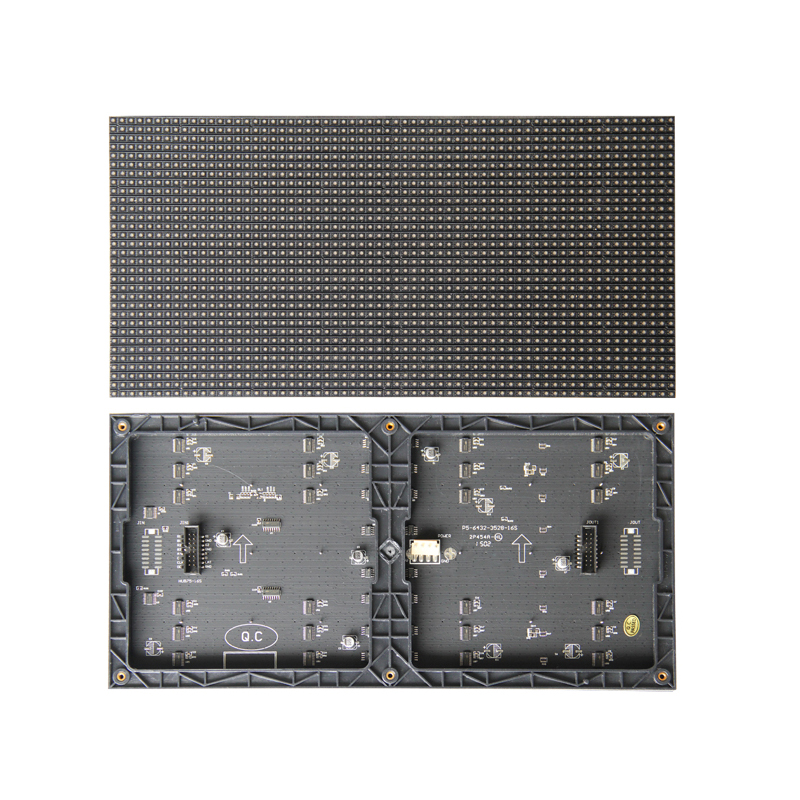

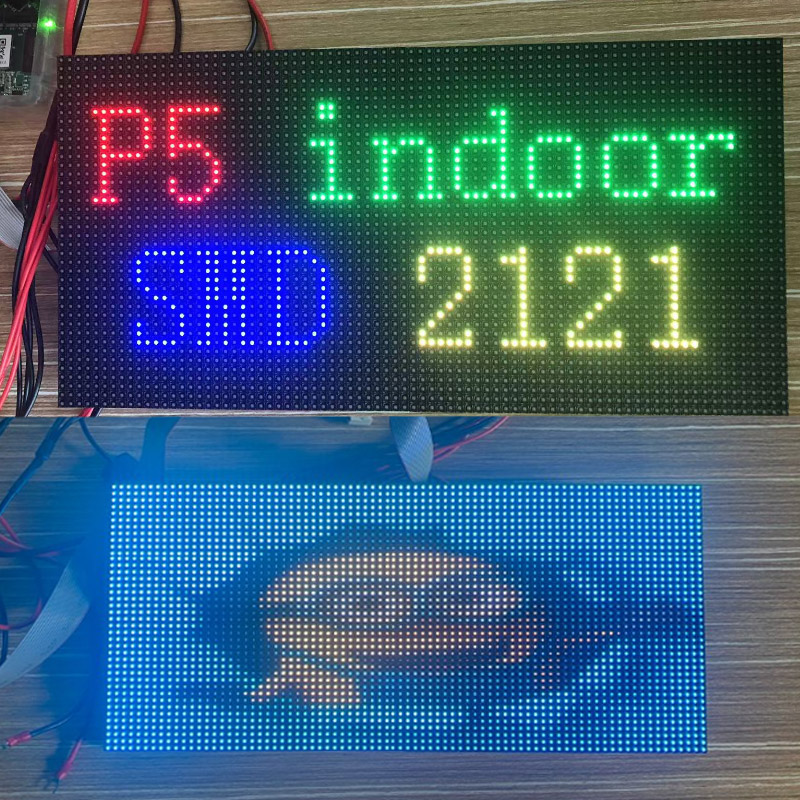

p5-3.jpgp5indoor test.jpg

High cost performance: The greatest advantage is the low cost. The price of the P5 module and its supporting system is much lower than that of small-pitch products, and the initial investment cost is very low.

High brightness and high reliability: Due to the large size of the LED beads, their brightness and stability are usually very good, the technology is very mature, and the failure rate is relatively low.

Long viewing distance: A relatively long viewing distance is required to achieve a good visual effect.

The P5 screen is highly suitable for large indoor environments where the clarity requirement is not high, the budget is limited, and the viewing distance is relatively long.

Large indoor gymnasiums/gyms: Suspended at a high place, they are used to display game scores, scoreboards, simple advertisements or welcome messages. The audience seats are far from the screen and do not have high requirements for clarity.

Factory workshop/warehouse: It is used to display production data, progress, notifications and other text and simple graphic information. Functionality comes first, followed by aesthetics.

Large wholesale markets/garages: used for Posting promotional information, wayfinding, price lists, etc. The ambient light is complex and requires a relatively high brightness.

Stage background (for events with extremely limited budgets) : It is used to enhance the atmosphere and display large color blocks and dynamic background videos. It is not suitable for occasions where details need to be displayed or close-up shots are required.

Long-distance information release screen: Located at the remote end of large Spaces such as airports and railway stations, it is used to release summary information such as flight schedules.
